Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LANJI
  • Model Number: JLD8050Z-J805
  • Type: Laser Diode
  • Package Type: Through Hole
  • Max. Forward Voltage: 3V
  • Max. Reverse Voltage: 2V
  • Max. Forward Current: 700mA
  • Max. Reverse Current: Standard
  • Wavelength: 803nm~813nm
  • Diameter: 5.6mm
  • Operating Case Temperature: -10 to +40 degree
  • Storage Temperature: -40 to +85 degree
  • Perpendicular Beam Divergence: 4 8 17 degree
  • Parallel Beam Divergence: 20 30 40 degree
  • Power: 200MW, 300MW, 500mw
  • Application-1: Solid state laser excitation
  • Application-2: Medical use & Measurement
  • Application-3.: Material processes

Specifications

Dongguan 808nm 500mw Infrared Laser Diode LD for Sale
Special infrared diode.
To 18/5.6 mm or C-Mounted package.

500mw infrared laser diode

Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

  Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

Product Description

  Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

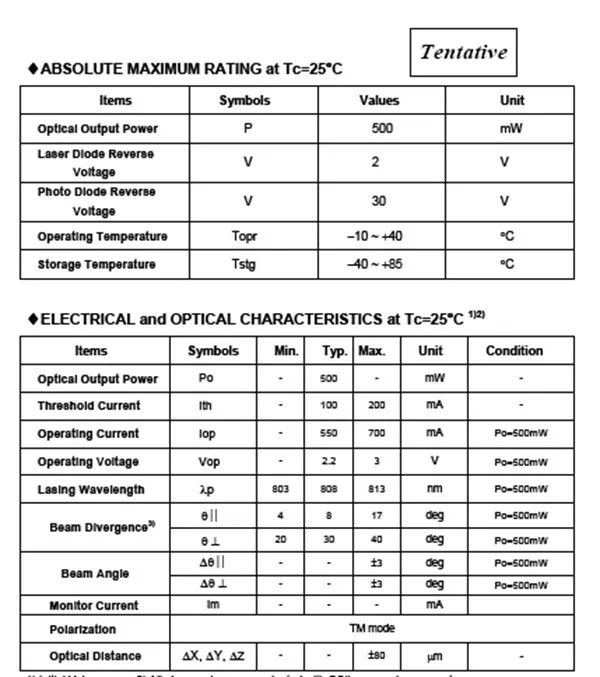

Electrical and Optical Characteristics (Tc=25°C)
Parameter  Symbol  Condition  Min.  Typ.  Max. Unit
Optical Output PowerPo--500-mw
Threshold Current    Ith--100200  mA
Operating CurrentIopPo=500mw-550700  mA
Operating Voltage    VopPo=500mw-2.23V
Lasing WavelengthLpPo=500mw803808813nm
Beam Divergence PerpendicularQvPo=500mw4817  °
ParallelQh203040  °
Beam AnglePerpendiculardQvPo=500mw--±3  °
ParalleldQh--±3  °

Absolute Maximum Ratings (Tc=25°C)
Parameter Symbol  Ratings  Unit
Optical Output PowerP500mw
Laser Diode Reverse VoltageV2V
Photo Diode Reverse VoltageV30V
Operating Case Temperature  Topr-10 to +40   °C
Storage Temperature  Tstg-40 to +85   °C
8 Dongguan 808nm 500mw Infrared Laser Diode LD for Sale   Dongguan 808nm 500mw Infrared Laser Diode LD for Sale
Packaging & Shipping

Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

1. Package details: Plastic box package, it depends on different kinds of laser diodes different sizes.  Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

2.Shipping details: 1-3 days after receiving the payment by T/T, Western Union ,ALIESCROW,PAYPAL . Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

Our Services





       We offer quick response, flexible payment, excellent quality, competitive prices, professional team, fast delivery, best after-sale services.   Dongguan 808nm 500mw Infrared Laser Diode LD for Sale LD

Company Information

       Dongguan Lanji Photoelectricity CO.,LTD. was founded in 2006, the company is located in Dongkeng Town, Dongguan, Guangdong Province. Which is a collection of research, produce, sales photoelectric enterprise. We specialize in semiconductor laser diodes, laser light source, led light source as the center and we are still continuously researching and developing the laser peripheral areas. H

    Since the establishment, our company has owned a number of excellent engineers, management department and well-trained staff. According to the modern enterprise management, we have perfect quality testing, monitoring, tracking and feedback system and put scientific management into effect. Further more, we also pursue ISO9001 international quality system, according to the international standard management. Our products also have all kinds of export certification and a number of patent. Dongguan 808nm 500mw Infrared Laser Diode LD for Sale

    Every customers admiration is our goal and future willings, we are concentrated in doing the best quality products, supplying the best goods and service.
    Main Industry: Semiconductor laser diode, Outdoor sports goods.

Dongguan 808nm 500mw Infrared Laser Diode LD for Sale
